一、 MiFare one IC S50
主要指标 First, MiFare one IC S50 key indicators
●容量为8K 位EEPROM ●
capacity of 8-bit EEPROM K
●
分为16 个扇区，每个扇区为4 块，每块16 个字节, 以块为存取单位 ● divided into 16
sectors, each sector for the four, each of 16 bytes to block access
unit
●每个扇区有独立的一组密码及访问控制 ●
each sector there are a group of independent passwords and access
control
●每张卡有唯一序列号，为32 位 ●
Each card has a unique serial number for 32
●具有防冲突机制，支持多卡操作 ● a
mechanism for conflict prevention, support for multi-card
operation
●无电源，自带天线，内含加密控制逻辑和通讯逻辑电路
● no power supply, comes with the antenna, embedded encryption
control logic and communication logic circuit
●数据保存期为10 年，可改写10
万次，读无限次 ● data retention period of 10 years can be rewritten
100,000 times, unlimited Reading
●工作温度： -20 ℃ ~50 ℃ (
湿度为90%) ● Operating Temperature: -20 ℃ to 50 ℃ (humidity of
90%)
●工作频率： 13.56MHZ ●
frequency: 13.56MHZ
●通信速率： 106 KBPS ●
communication rate: 106 KBPS
●读写距离： 10 cm
以内（与读写器有关） ● literacy distance: within 10 cm (and the
reader)
二、 M1 射频卡与读写器的通讯
Second, M1 RF card and reader communication

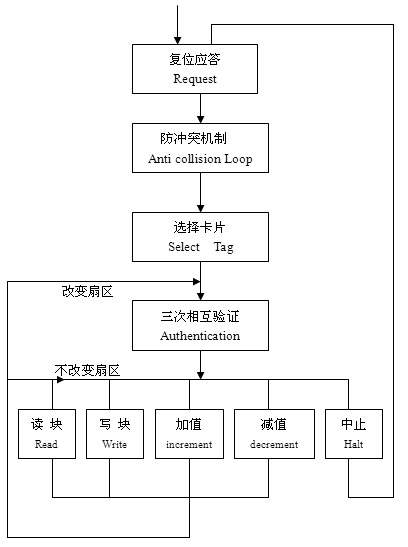

见下图示： Icon
below:
三、工作原理 Third,
working principle
卡片的电气部分只由一个天线和ASIC
组成。 Electric card by only one part of the antenna and ASIC
components.
天线：卡片的天线是只有几组绕线的线圈，很适于封装到IS0
卡片中。 Antenna: card antenna is only a few group wound coil, it
is appropriate to IS0 card in the package.
ASIC
：卡片的ASIC 由一个高速（ 106KB 波特率）的RF 接口，一个控制单元和一个8K 位EEPROM 组成。
ASIC: the ASIC card from a high-speed (106KB baud rate) RF
interface, a control unit and an 8-K EEPROM components.
工作原理：读写器向M1
卡发一组固定频率的电磁波，卡片内有一个LC 串联谐振电路，其频率与讯 Principle: M1 to the card
reader, a group of fixed-frequency electromagnetic waves, card there
is a series resonant LC circuit, the frequency and --
写器发射的频率相同，在电磁波的激励下， LC
谐振电路产生共振，从而使电容内有了电荷，在这个电 Launched write the same frequency in
the electromagnetic wave excitation, the resonant LC resonant
circuit, so that within a capacitive charge, in this --
容的另一端，接有一个单向导通的电子泵，将电容内的电荷送到另一个电容内储存，当所积累的电荷
Capacity on the other side, then there is a single electronic
wizard-pump, the capacitive charge to another within the storage
capacitor, when the accumulated charge
达到2V
时，此电容可做为电源为其它电路提供工作电压，将卡内数据发射出去或接取读写器的数据。 To 2 V, the
capacitance can be used as a power source to provide work for other
circuit voltage, will launch the card data or access the data read
and write. |
|
